2702008 | Phoenix Contact

I/O module for Axioline F station, Inputs: 4, (W x H x D) 35 x 126.1 x 54 mm, 2702008

Order No.: 64P8432
EAN: 4055626008400
MPN:
2702008
AXL F AI4 U XC 1H
Series: Axioline F
2702008 Phoenix Contact Analog Modules

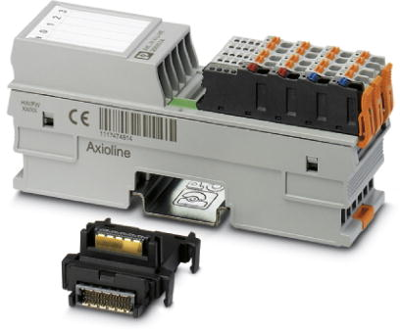

Image may differ
Unit Price (€ / pc.)
482.9258 € *
Available: 0 pcs.
Available in 10 days: 20 pcs.
Leadtime: 2 Weeks **
Total Price:
482.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
482.9258 €

Analog module, 2702008, Phoenix Contact

Axioline F, Analog input module, Analog inputs: 4, 0 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, Connection technology: 2-, 3-, 4-conductor, Transmission speed in the local bus: 100 Mbps, integrated sensor supply, Extreme conditions version, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 4 analog, bipolar input channels for the connection of current signals
  • Simultaneous scanning of all channels by means of simultaneous sampling
  • High crosstalk attenuation between the channels, thanks to separate signal paths
  • Particularly robust against electromagnetic interference
  • Device rating plate stored
  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C to +70 °C
  • Partially coated PCBs
Technical specifications
Suitable for Axioline F station
Number of analogue inputs 4
Assembly DIN rail
Depth 54 mm
Version analog module
Width 35 mm
Height 126.1 mm
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
