2701389 | Phoenix Contact

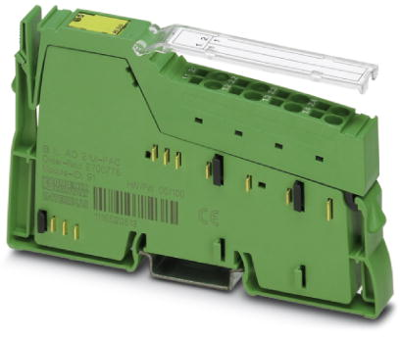

Inline terminal for series Inline, Outputs: 2, (W x H x D) 12.2 x 119.8 x 71.5 mm, 2701389

Order No.: 64P9049
EAN: 4046356743693
MPN:
2701389
IB IL AO 2/UI-XC-PAC
Series: IB IL
2701389 Phoenix Contact Analog Modules
Image may differ
Unit Price (€ / pc.)
242.5696 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
242.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
242.5696 €

Analog module, 2701389, Phoenix Contact

Inline, Analog output terminal, Analog output: 2, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-conductor, Transmission speed in the local bus: 500 kbps, Extreme conditions version, Degree of protection: IP20, including Inline connectors and labeling field.

Features

  • Can be used under extreme ambient conditions
  • Extended temperature range of -40 °C to +70 °C
  • Coated PCBs
Technical specifications
Filter Property Value
Depth 71.5 mm
Assembly DIN rail
Number of analogue outputs 2
Width 12.2 mm
Height 119.8 mm
Version analog module
Suitable for series Inline
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
