2701237 | Phoenix Contact

I/O module for Axioline F station, Outputs: 8, (W x H x D) 53.6 x 126.1 x 54 mm, 2701237

Order No.: 64P8439
EAN: 4046356729857
MPN:
2701237
AXL F AO8 XC 1F
Series: Axioline F
2701237 Phoenix Contact Analog Modules
Image may differ
Unit Price (€ / pc.)
720.2951 € *
Available in 10 days: 66 pcs. - if ordered today
Total Price:
720.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
720.2951 €

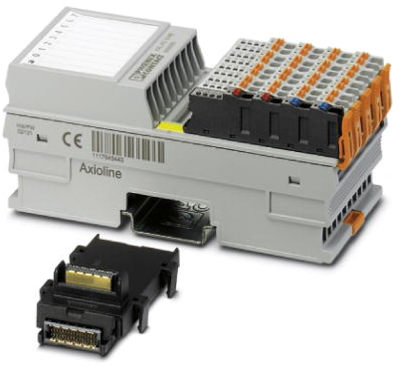

Analog module, 2701237, Phoenix Contact

Axioline F, Analog output module, Analog outputs: 8, 0 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, connection technology: 2-conductor, Transmission speed in the local bus: 100 Mbps, Extreme conditions version, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 8 analog, bipolar input channels for the connection of either voltage or current signals
  • Short-circuit-proof outputs
  • Device rating plate stored
  • Safe analog value processing with SAFE AI and other components
Technical specifications
Filter Property Value
Assembly DIN rail
Height 126.1 mm
Version analog module
Width 53.6 mm
Number of analogue outputs 8
Suitable for Axioline F station
Depth 54 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
