2701215 | Phoenix Contact

Inline terminal for series Inline, Inputs: 4, (W x H x D) 48.8 x 135 x 71.5 mm, 2701215

Order No.: 64P9031
EAN: 4046356727839
MPN:
2701215
IB IL AI 4/EF-XC-PAC
Series: IB IL
2701215 Phoenix Contact Analog Modules

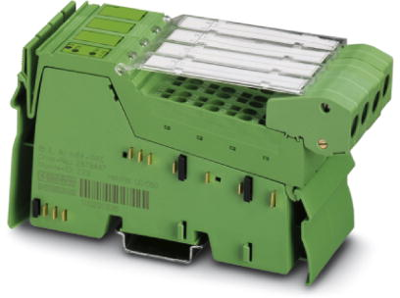

Image may differ
Unit Price (€ / pc.)
668.661 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
668.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
668.661 €

Analog module, 2701215, Phoenix Contact

Inline, Analog input terminal, Analog inputs: 4, 0 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-, 3-, 4-conductor, Transmission speed in the local bus: 500 kbps, Extreme conditions version, Degree of protection: IP20, including Inline connectors and marking fields.

Features

  • 4 differential signal inputs
  • The channels are parameterized independently of one another via the bus system
  • Parameterization via process data or PCP
  • Measured values can be represented in four different formats
  • Resolution depends on the representation format and the measuring range
  • Process data update of all channels in max. 1 ms
  • Sensor supply with channel-specific integrated short-circuit and overload protection
  • Bus-synchronous provision of input values with very low jitter (< 10 μs)
Technical specifications
Filter Property Value
Height 135 mm
Version analog module
Assembly DIN rail
Depth 71.5 mm
Width 48.8 mm
Number of analogue inputs 4
Suitable for series Inline
Logistics
Property Value
Customs tariff number 85389091
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
