2700351 | Phoenix Contact

Decentralized I/O device for analog drive, Outputs: 1, (W x H x D) 16.6 x 29 x 79.5 mm, 2700351

Order No.: 64P8392
EAN: 4046356782654
MPN:
2700351
AXL E IOL AO1 I M12 S
Series: AXIOLINE E
2700351 Phoenix Contact Analog Modules
Image may differ
Unit Price (€ / pc.)
198.7062 € *
Available: 0 pcs.
Available in 10 days: 83 pcs.
Leadtime: 2 Weeks **
Total Price:
198.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
198.7062 €

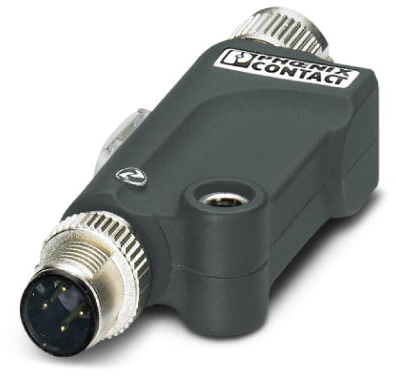

Analog module, 2700351, Phoenix Contact

Axioline E-IO-Link/analog converter for connecting an analog actuator, Current range: 4-20 mA, M12 fast connection technology, straight version.

Features

  • 1 IO-Link interface
  • IO-Link A port
  • IO-Link specification V1.1.1
  • 1 analog input
  • Connection of the actuator in 3-conductor technology via M12 connector (A-coded, 5-pos.)
  • Functional ground connection for local connection to functional ground
  • Supply of the module electronics and the sensor via the IO-Link interface of the IO-Link master
  • Local status indicator
  • IP65/IP67 degree of protection
Technical specifications
Depth 79.5 mm
Number of analogue outputs 1
Width 16.6 mm
Height 29 mm
Version analog module
Suitable for analog drive
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
