2688491 | Phoenix Contact

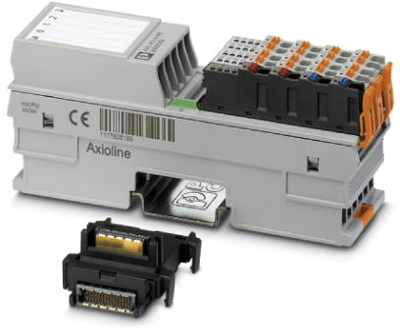

I/O module for Axioline F station, Inputs: 4, (W x H x D) 35 x 126.1 x 54 mm, 2688491

Order No.: 64P8429
EAN: 4046356744225
MPN:
2688491
AXL F AI4 I 1H
Series: Axioline F
2688491 Phoenix Contact Analog Modules
Image may differ
Unit Price (€ / pc.)
393.7472 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
393.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
393.7472 €

Analog module, 2688491, Phoenix Contact

Axioline F, Analog input module, Analog inputs: 4, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-, 3-, 4-conductor, Transmission speed in the local bus: 100 Mbps, integrated sensor supply, Degree of protection: IP20, including bus base module and Axioline F connectors.

Features

  • 4 analog, bipolar input channels for the connection of current signals
  • Simultaneous scanning of all channels by means of simultaneous sampling
  • High crosstalk attenuation between the channels, thanks to separate signal paths
  • Particularly robust against electromagnetic interference
  • Device rating plate stored
Technical specifications
Filter Property Value
Height 126.1 mm
Depth 54 mm
Suitable for Axioline F station
Assembly DIN rail
Number of analogue inputs 4
Width 35 mm
Version analog module
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
