2702998 | Phoenix Contact

Siren element, 3 kHz, 105 dB, 24 V AC/DC, 40 mA, black, 2702998

Order No.: 64P9451
EAN: 4055626492070
MPN:
2702998
PSD-S AE SM2-7 105DB/1
Series: PSD-S AE

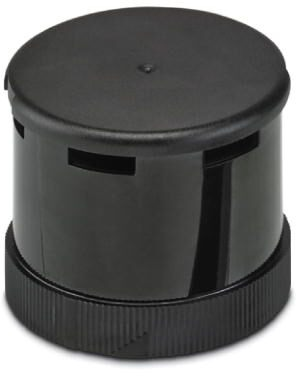

2702998 Phoenix Contact Acoustic Signal Transmitters Image 1
2702998 Phoenix Contact Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
92.1060 € *
Available in 10 days: 136 pcs. - if ordered today
Total Price:
92.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
92.1060 €

Acoustic element, 2702998, Phoenix Contact

Siren element, 24 V AC/DC, max. 105 db(A), continuous tone and alternating continuous tone.

Features

  • Multi-tone siren signaling depending on the situation
  • Two tone functions can be selected via DIP switches
  • Adjustable volume
  • Minimum volume of 95 dB(A)
Technical specifications
Filter Property Value
Version siren element
Colour black
Voltage 24 V AC/DC
Resonance frequency 3 kHz
Rated current 40 mA
Frequency 3 kHz
Sound pressure level 105 db

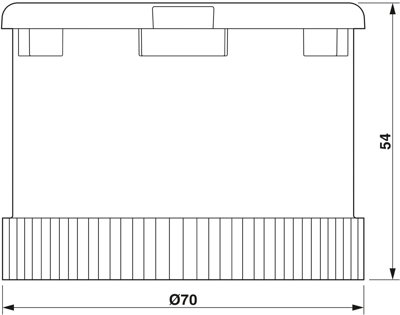

Installation diameter 70 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85318070
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
