2700140 | Phoenix Contact

Voice output, 88 dB, 12 VDC, 50 mA, black, 2700140

Order No.: 64P9455
EAN: 4046356491327
MPN:
2700140
PSD-S AE V15/1
Series: PSD-S AE

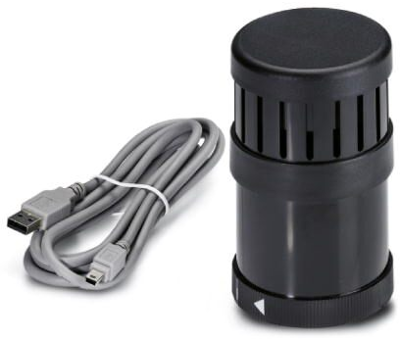

2700140 Phoenix Contact Acoustic Signal Transmitters Image 1
2700140 Phoenix Contact Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
307.0081 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
307.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
307.0081 €

Acoustic element, 2700140, Phoenix Contact

Voice output element, 24 VDC, max. 50 mp3 or wav files can be saved, max. 15 files can be controlled, black.

Features

  • Multilingual signaling thanks to voice output
  • Up to 50 mp3 or wav files can be saved
  • The volume can be set via configuration software
  • The volume can be reduced using up to two control cables
  • Maximum volume of 88 dB(A)
  • The volume can be set via potentiometer
Technical specifications
Filter Property Value
Version speech module
Colour black
Sound pressure level 88 db
Voltage 12 VDC

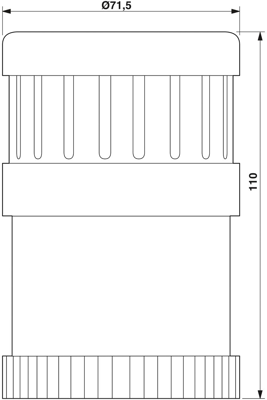

Installation diameter 71.5 mm
Resonance frequency 1.6 kHz
Rated current 50 mA
Logistics
Property Value
Country of origin DE
Customs tariff number 85318070
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
