2700136 | Phoenix Contact

Buzzer element, 3.5 kHz, 85 dB, 24 V AC/DC, 25 mA, black, 2700136

Order No.: 64P9450
EAN: 4046356491280
MPN:
2700136
PSD-S AE BM2-1 85DB
Series: PSD-S AE

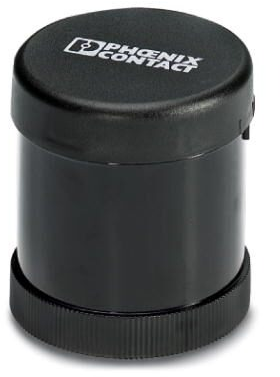

2700136 Phoenix Contact Acoustic Signal Transmitters Image 1
2700136 Phoenix Contact Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
87.6792 € *
Available in 10 days: 33 pcs. - if ordered today
Total Price:
87.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
87.6792 €

Acoustic element, 2700136, Phoenix Contact

Buzzer element, continuous/pulse tone, 24 V AC/DC, max. 85 dB(A), black.

Features

  • Multi-tone siren signaling depending on the situation
  • Tone function can be set via DIP switches
Technical specifications
Filter Property Value
Version buzzer element
Colour black
Voltage 24 V AC/DC
Resonance frequency 1.75 kHz
Rated current 25 mA
Frequency 3.5 kHz
Sound pressure level 85 db

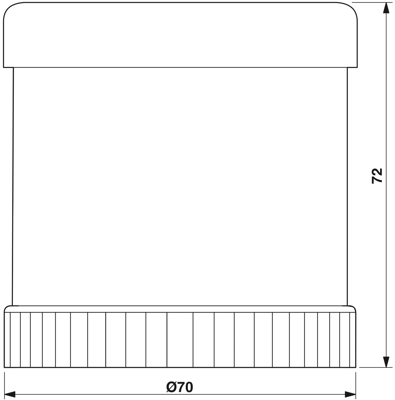

Installation diameter 70 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85318070
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
