2320393 | Phoenix Contact
Buffer module, 24 VDC, 40 A, for power supply, 2320393
Unit Price (€ / pc.)
401.03 € *
Available in 5 Days: 96 pcs. - if ordered today

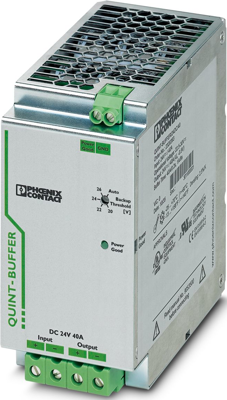

Buffer module, 2320393, Phoenix Contact
QUINT buffer module with maintenance-free capacitor-based energy storage for DIN rail mounting, decoupled input: 24 V DC, decoupled output: 24 V DC/40 A, with integrated SFB (Selective Fuse Breaking) Technology, including mounted UTA 107 universal DIN rail adapter.
Features
- Longer buffer time, thanks to integrated decoupling function
- Robust due to reliable supply at temperatures from -25°C to +80°C
- Saves space: electronic switchover unit and energy storage in the same housing
- Flexible - supports operation in auto mode as well as manual adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | buffer module | |
| Version | 24 VDC, 40 A | |
| Suitable for | power supply |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
