1852862 | Phoenix Contact
Mounting flange for wall cutouts, 1852862
Order No.: 62P4816
EAN: 4017918127183
MPN:
1852862
VC-AF
Unit Price (€ / pc.)
4.3673 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
3.9270 €
100 pcs.
3.3320 €
*incl. VAT plus shipping costs
**Subject to prior sale

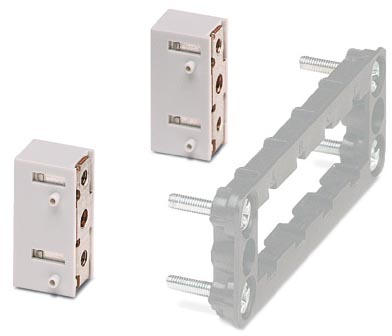

Mounting flange VC-AF

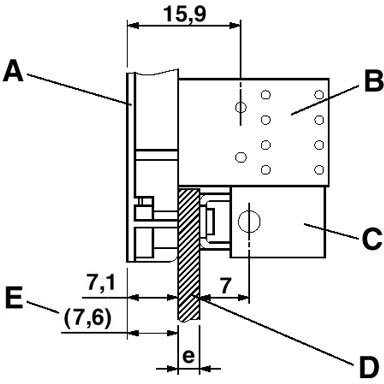

Mounting flange for screw lock, for mounting the contact insert module, for wall thicknesses 1-5 mm
The technical features of 1852862 from Phoenix Contact at a glance
- Product Type designation: VC-AF
- Mounting method of the fastening element: Clamp / Plug
- Flammability class of the insulating material (in the style of UL 94): V0
- Article description: VC-AF
- Mounting direction: swiveling
Technical specifications
| Suitable for | wall cutouts | |
| Accessory Type | Mounting flange |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
