1415243 | Phoenix Contact
Module plate for sealing frame, 1415243
Order No.: 60P8980
EAN: 4055626039480
MPN:
1415243
MD-INB24-4-SZP-S
Unit Price (€ / pc.)
126.2352 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

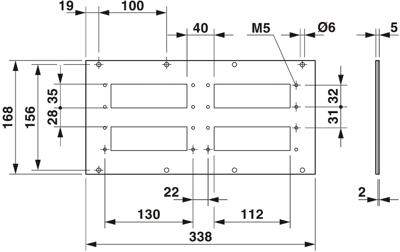

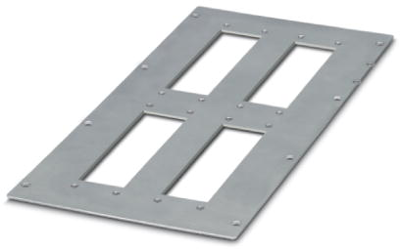

Module plate MD-INB24-4-SZP-S
Module plate, with seal, for CES B24 sealing frame, with 4 openings, including mounting screws
The technical features of 1415243 from Phoenix Contact at a glance
- Protection class (IP, mounted): IP54
- Adapter plate material: Stainless steel
- Size: für B24
- Housing surface finish: Not relevant
- Article description: MD-INB24-4-SZP-S
- Number of recesses: 4
- Length: 338 mm
- Product type designation: Module plate
- Seal available: Yes
- Flammability class of the insulating material (in the style of UL 94): Not relevant
- Shape of the recess: rectangular
- Color: silver gray
- Width: 168 mm
Further links to Phoenix Contact 1415243
Under the following links you will find more information about Phoenix Contact 1415243
Technical specifications
| Suitable for | sealing frame | |
| Accessory Type | Module plate |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 73089059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
