1415242 | Phoenix Contact
Module plate for sealing frame, 1415242
Order No.: 60P8979
EAN: 4055626039473
MPN:
1415242
MD-INB24-3-SZP-S
Unit Price (€ / pc.)
120.9278 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

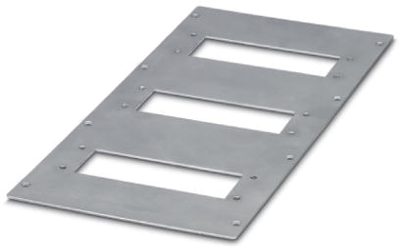

Module plate MD-INB24-3-SZP-S
Module plate, with seal, for CES B24 sealing frame, with 3 openings, including mounting screws

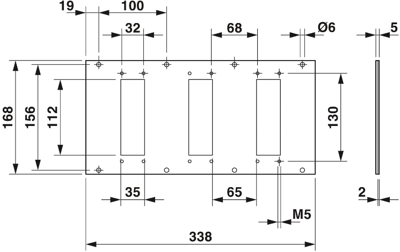

The technical features of 1415242 from Phoenix Contact at a glance
- Width: 168 mm
- Color: silver gray
- Shape of the recess: rectangular
- Flammability class of the insulating material (in the style of UL 94): Not relevant
- Seal available: Yes
- Product type designation: Module plate
- Length: 338 mm
- Number of recesses: 3
- Article description: MD-INB24-3-SZP-S
- Housing surface finish: Not relevant
- Size: für B24
- Adapter plate material: Stainless steel
- Protection class (IP, mounted): IP54
Further links to Phoenix Contact 1415242
Under the following links you will find more information about Phoenix Contact 1415242
Technical specifications
| Suitable for | sealing frame | |
| Accessory Type | Module plate |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
