2896267 | Phoenix Contact

Housing lower part, PC, (W x H x D) 71.6 x 89.7 x 48.9 mm, 4 HP, black, for enclosure, 2896267

Order No.: 64P0797
EAN: 4046356096713
MPN:
2896267
BC 71,6 UT HBUS BK
Series: BC
2896267 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available in 10 days: 3,591 pcs. - if ordered today
Total Price:
4.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.9028 €

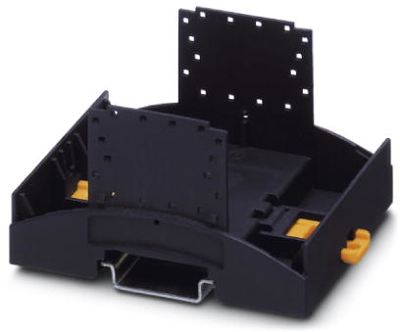

Mounting base housing, 2896267, Phoenix Contact

DIN rail housing for use in distribution boards in accordance with DIN 43880, Lower housing part with base latch, Width: 71.6 mm, Height: 89.7 mm, Depth: 48.9 mm, Color: black (9005), Cross connection: DIN rail connector (optional), Number of positions cross connector: 16.

Features

  • Coordinated housing and connection system for faster device development
  • Individual online configuration for diverse applications in building automation
  • Variety of connection technology
  • Can be mounted on the DIN rail or the wall
  • With DIN-rail-mountable bus connector and power connector system as an option
  • Tool-free mounting
Technical specifications
Filter Property Value
Width 71.6 mm
Product type housing lower part
Material PC
cutting pitch differential 4 HP
Colour black
Suitable for enclosure
Depth 48.9 mm
Height 89.7 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
