2896254 | Phoenix Contact
Housing lower part, PC, (W x H x D) 35.6 x 89.7 x 48.9 mm, 2 HP, black, for enclosure, 2896254
Unit Price (€ / pc.)
4.4506 € *
Available: 0 pcs.
Available in 10 days: 881 pcs.
Leadtime: 2 Weeks **

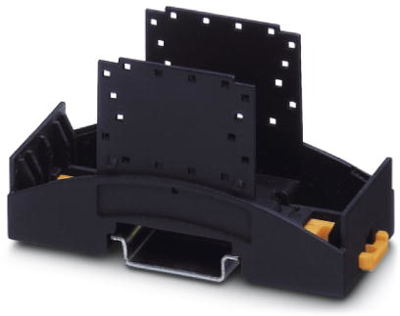

Mounting base housing, 2896254, Phoenix Contact
DIN rail housing for use in distribution boards in accordance with DIN 43880, Lower housing part with base latch, Width: 35.6 mm, Height: 89.7 mm, Depth: 48.9 mm, Color: black (9005), Cross connection: DIN rail connector (optional), Number of positions cross connector: 16.
Features
- Coordinated housing and connection system for faster device development
- Individual online configuration for diverse applications in building automation
- Variety of connection technology
- Can be mounted on the DIN rail or the wall
- With DIN-rail-mountable bus connector and power connector system as an option
- Tool-free mounting
Technical specifications
| Width | 35.6 mm | |
| cutting pitch differential | 2 HP | |
| Colour | black | |
| Material | PC | |
| Product type | housing lower part | |
| Suitable for | enclosure | |
| Height | 89.7 mm | |
| Depth | 48.9 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
