2278539 | Phoenix Contact

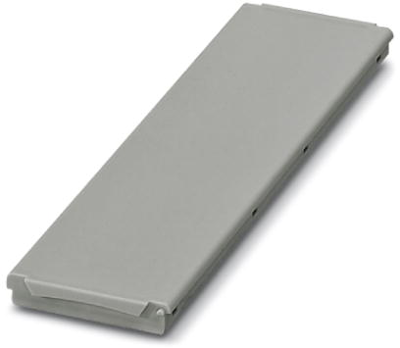

Enclosure cover, PC, (W x H x D) 161.6 x 45 x 8 mm, light gray, for enclosure, 2278539

Order No.: 64P0752
EAN: 4046356299466
MPN:
2278539
BC 161,6 DKL R KMGY
Series: BC
2278539 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
2.7727 € *
Available in 5 Days: 671 pcs. - if ordered today
Total Price:
2.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7727 €

Housing cover, 2278539, Phoenix Contact

DIN rail housing for use in distribution boards in accordance with DIN 43880, Latching cover (non-detachable), Width: 161.6 mm, Height: 45 mm, Depth: 8 mm, Color: light grey (7035).

Features

  • Coordinated housing and connection system for faster device development
  • Individual online configuration for diverse applications in building automation
  • Variety of connection technology
  • Can be mounted on the DIN rail or the wall
  • With DIN-rail-mountable bus connector and power connector system as an option
  • Tool-free mounting
Technical specifications
Filter Property Value
Depth 8 mm
Height 45 mm
Colour light gray
Material PC
Width 161.6 mm
Suitable for enclosure
Product type enclosure cover
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
