2230010 | Phoenix Contact

Front plate, PC, (W x H x D) 163 x 30 x 62 mm, black, 2230010

Order No.: 64P0856
EAN: 4055626381459
MPN:
2230010
ECS-P-122X169-S-UV1-2M12
Series: ECS
2230010 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
32.1776 € *
Available in 10 days: 78 pcs. - if ordered today
Total Price:
32.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.1776 €

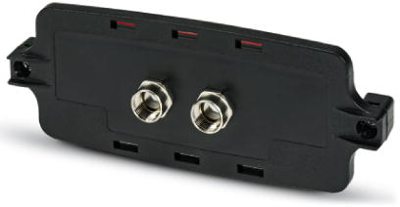

Front plate, 2230010, Phoenix Contact

Screw locking two female M12 faceplate of the ECS Family. IP66/67/69 rated when mated with associated enclosure. Color: Black (9005), Width: 163 mm, Height: 30 mm, Depth: 62 mm.

Features

  • Housing design supports the installation of a range of PCB thicknesses for high application diversity
  • Optional accessories for wall and mast mounting
  • Proven PCB connection technology
  • Effective protection of electronics against thermal and mechanical influences
  • Suitable for outdoor/indoor applications
Technical specifications
Filter Property Value
Material PC
Colour black
Product type front plate
Degree of protection (IP) IP66/IP67/IP69
Height 30 mm
Width 163 mm
Depth 62 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin US
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
