2203890 | Phoenix Contact

Connection orifice, PA, (W x H x D) 25 x 7.25 x 22.4 mm, light gray, 2203890

Order No.: 65P0356
EAN: 4055626465951
MPN:
2203890
ICS25-F22S-7035
Series: ICS
2203890 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available in 5 Days: 3,568 pcs. - if ordered today
Total Price:
0.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.8568 €

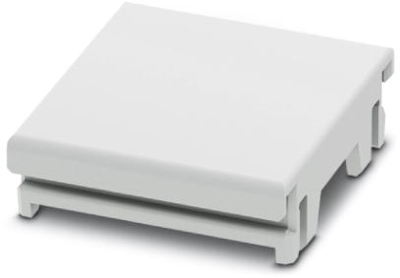

Connection plate, 2203890, Phoenix Contact

DIN rail housing, ICS filler, closed, Width: 25 mm, Height: 7.25 mm, Depth: 22.4 mm, Color: light grey (7035).

Features

  • Flexible use, thanks to the modular system and unique modularity in the connection technology
  • Standardized connections such as RJ45, USB, D-SUB and antenna sockets as components that can be integrated
  • Optimal space utilization, as well as adaptability of design, colors, and printing
  • Easy and fast push-in mounting of assembled printed-circuit boards, thanks to stable guide rails
Technical specifications
Filter Property Value
Type of mounting snap-in
Depth 22.4 mm
Degree of protection (IP) IP20
Material PA
Width 25 mm
Height 7.25 mm
Product type connection orifice
Colour light gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
