2201778 | Phoenix Contact

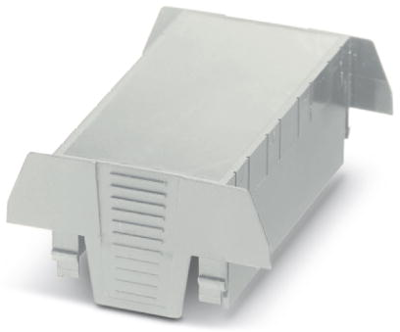

Upper part of housing, ABS, (W x H x D) 90.1 x 74.65 x 36.95 mm, light gray, for enclosure, 2201778
Unit Price (€ / pc.)
2.8679 € *
Standard delivery time from the manufacturer is: On Request
Upper part of housing, 2201778, Phoenix Contact
DIN rail housing, Upper housing part, Flat design, Connection opening on both sides, Width: 90.1 mm, Height: 74.65 mm, Depth: 36.95 mm, Color: light grey (7035).
Features
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
- Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 36.95 mm | |
| Suitable for | enclosure | |
| Degree of protection (IP) | IP20 | |
| Height | 74.65 mm | |
| Width | 90.1 mm | |
| Colour | light gray | |
| Material | ABS | |
| Product type | upper part of housing | |
| Type of mounting | snap-in |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
