2201748 | Phoenix Contact

Upper part of housing, ABS, (W x H x D) 70.1 x 75 x 36.95 mm, light gray, for enclosure, 2201748

Order No.: 64P0977
EAN: 4046356908207
MPN:
2201748
EH 70-C SS/ABS GY7035
Series: EH
2201748 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
2.9155 € *
Available in 10 days: 185 pcs. - if ordered today
Total Price:
2.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.9155 €

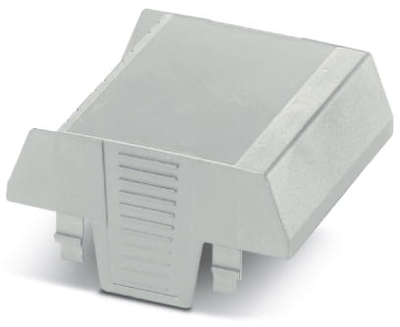

Upper part of housing, 2201748, Phoenix Contact

DIN rail housing, Upper housing part, Tall design, Connection opening on one side, Width: 70.1 mm, Height: 75 mm, Depth: 36.95 mm, Color: light grey (7035).

Features

  • DIN rail or wall mounting for application-specific device attachment
  • Easy design-in, thanks to variable housing form factor
  • Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
  • Three cover versions for individual PCB connections
  • Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
Depth 36.95 mm
Product type upper part of housing
Height 75 mm
Suitable for enclosure
Degree of protection (IP) IP20
Width 70.1 mm
Colour light gray
Material ABS
Type of mounting snap-in
Logistics
Country of origin IN
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
