2201493 | Phoenix Contact
Front connection module, PC, (W x H x D) 39.43 x 128 x 48.3 mm, light gray, for series ME, 2201493
Unit Price (€ / pc.)
38.7226 € *
Available in 10 days: 6 pcs. - if ordered today

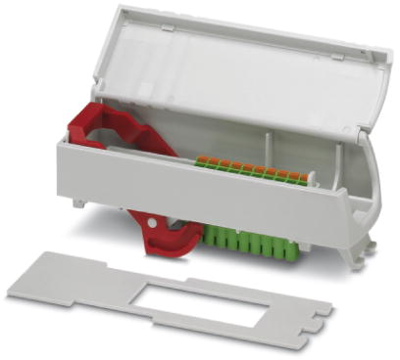

Front connection module, 2201493, Phoenix Contact
Connection technology carrier fully assembled with FKCN 2x10-position, Cover and release lever including fitted cover, Corresponding header: 1xCCDN 2.5/10-G1 P26 THR (1734355).
Features
- Tool-free mounting
- Variety of connection technology
- Can be mounted on the DIN rail
- With DIN-rail-mountable bus connector and power connector system as an option
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PC | |
| Colour | light gray | |
| Product type | front connection module | |
| Degree of protection (IP) | IP20 | |
| Height | 128 mm | |
| Suitable for | series ME | |
| Width | 39.43 mm | |
| Depth | 48.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
