2201456 | Phoenix Contact

Upper part of housing, ABS, (W x H x D) 22.6 x 75.26 x 36.95 mm, black, for enclosure, 2201456

Order No.: 64P0872
EAN: 4046356911252
MPN:
2201456
EH 22,5 F-C DS/ABS BK9005
Series: EH
2201456 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
1.4756 € *
Available in 10 days: 1,195 pcs. - if ordered today
Total Price:
1.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.4756 €

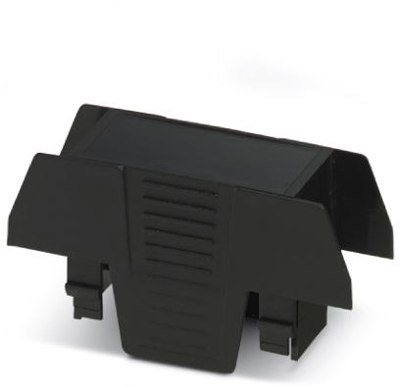

Upper part of housing, 2201456, Phoenix Contact

DIN rail housing, Upper housing part, Flat design, Connection opening on both sides, Width: 22.6 mm, Height: 75.26 mm, Depth: 36.95 mm, Color: black (9005).

Features

  • DIN rail or wall mounting for application-specific device attachment
  • Easy design-in, thanks to variable housing form factor
  • Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
  • Three cover versions for individual PCB connections
  • Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
Suitable for enclosure
Product type upper part of housing
Depth 36.95 mm
Colour black
Material ABS
Type of mounting snap-in
Width 22.6 mm
Height 75.26 mm
Degree of protection (IP) IP20
Logistics
Country of origin IN
Customs tariff number 85472000
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
