2200964 | Phoenix Contact

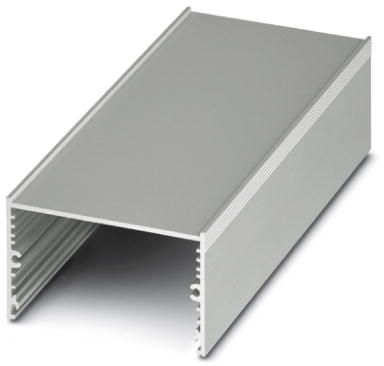

Profile cover, aluminum, (L x W x D) 60 x 75.6 mm x 43.1 mm, silver, for enclosure, 2200964
Unit Price (€ / pc.)
11.1146 € *
Standard delivery time from the manufacturer is: On Request
Profile cover, 2200964, Phoenix Contact
Press-drawn section housings, Screw mounting, Profile cover, Color: aluminum color, Width: 75.6 mm, Profile width (internal): 71.5 mm, Profile width (external): 75.6 mm, Length: 60 mm, Depth: 43.1 mm.
Features
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- EMC protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 43.1 mm | |
| Material | aluminum | |
| Length | 60 mm | |
| Product type | profile cover | |
| Width | 75.6 mm | |
| Suitable for | enclosure | |
| Degree of protection (IP) | IP40 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
