2200917 | Phoenix Contact

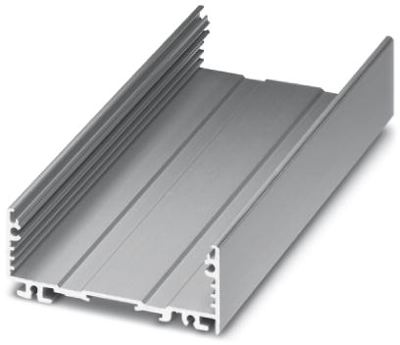

Surface mount housing lower part, aluminum, (L x W x H x D) 42.5 x 75 x 29.4 x 29.4 mm, silver, for enclosure, 2200917
Unit Price (€ / pc.)
9.4962 € *
Available: 0 pcs.
Available in 10 days: 281 pcs.
Leadtime: 2 Weeks **
Profile, 2200917, Phoenix Contact
Press-drawn section housing, Screw mounting, Basic profile, Color: aluminum color, Profile width (internal): 72 mm, Profile width (external): 75 mm, Length: 42.5 mm, Depth: 29.4 mm.
Features
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- EMC protection
Technical specifications
| Type of mounting | Schraube | |
| Width | 75 mm | |
| Colour | silber | |
| Suitable for | Gehäuse | |
| Height | 29.4 mm | |
| Length | 42.5 mm | |
| Material | Aluminium | |
| Product type | Aufbaugehäuse Unterteil | |
| Degree of protection (IP) | IP40 | |
| Depth | 29.4 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 76042990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
