1074967 | Phoenix Contact
Upper part of housing, ABS/PC, (W x H x D) 45.1 x 74.65 x 36.95 mm, light gray, for enclosure, 1074967
Unit Price (€ / pc.)
3.4510 € *
Available in 5 Days: 140 pcs. - if ordered today
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4510 €
10 pcs.
3.1654 €
50 pcs.
2.8798 €
100 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

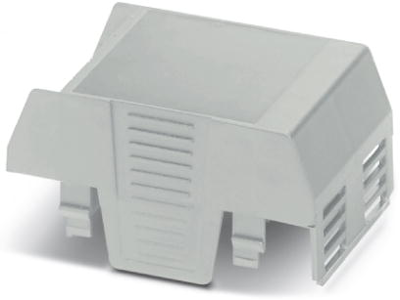

Upper part of housing, 1074967, Phoenix Contact
DIN rail housing, Upper housing part, Flat design, Connection opening on both sides, Width: 45.1 mm, Height: 74.65 mm, Depth: 36.95 mm, Color: light grey (7035).
Features
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS/PC | |
| Height | 74.65 mm | |
| Type of mounting | snap-in | |
| Depth | 36.95 mm | |
| Product type | upper part of housing | |
| Degree of protection (IP) | IP20 | |
| Width | 45.1 mm | |
| Colour | light gray | |
| Suitable for | enclosure |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
