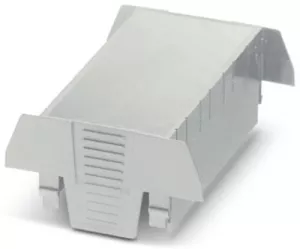

1074933 | Phoenix Contact

Upper part of housing, ABS/PC, (W x H x D) 90.1 x 74.65 x 36.95 mm, light gray, for enclosure, 1074933

Order No.: 65P1855
EAN: 4055626776699
MPN:
1074933
EH 90 F-C CS/ABS-PC GY7035
Series: EH
1074933 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
5.1527 € *
Available in 5 Days: 78 pcs. - if ordered today
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.7481 €
50 pcs.
4.3197 €
100 pcs.
3.8913 €
*incl. VAT plus shipping costs
Subject to prior sale

Upper part of housing, 1074933, Phoenix Contact

DIN rail housing, Upper housing part, Flat design, No connection opening, Width: 90.1 mm, Height: 74.65 mm, Depth: 36.95 mm, Color: light grey (7035).

Features

  • DIN rail or wall mounting for application-specific device attachment
  • Easy design-in, thanks to variable housing form factor
  • Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
  • Three cover versions for individual PCB connections
  • Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
Filter Property Value
Type of mounting snap-in
Depth 36.95 mm
Degree of protection (IP) IP20
Material ABS/PC
Suitable for enclosure
Width 90.1 mm
Height 74.65 mm
Product type upper part of housing
Colour light gray
Logistics
Property Value
Country of origin IN
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
