1071115 | Phoenix Contact

Upper part of housing, ABS/PC, (W x H x D) 70.1 x 75 x 36.95 mm, light gray, for enclosure, 1071115

Order No.: 65P1338
EAN: 4055626751726
MPN:
1071115
EH 70-C SS/ABS-PC GY7035
Series: EH
1071115 Phoenix Contact Accessories for Enclosures

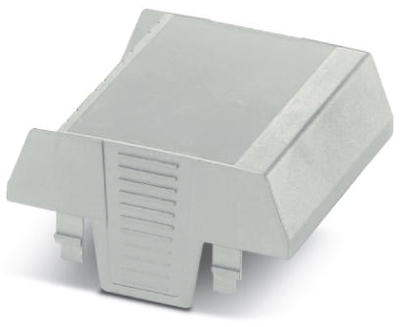

Image may differ
Unit Price (€ / pc.)
5.2360 € *
Available in 10 days: 150 pcs. - if ordered today
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2360 €
10 pcs.
4.8076 €
50 pcs.
4.3792 €
100 pcs.
3.9389 €
*incl. VAT plus shipping costs
Subject to prior sale

Upper part of housing, 1071115, Phoenix Contact

DIN rail housing, Upper housing part, Tall design, Connection opening on one side, Width: 70.1 mm, Height: 75 mm, Depth: 36.95 mm, Color: light grey (703589).

Features

  • DIN rail or wall mounting for application-specific device attachment
  • Easy design-in, thanks to variable housing form factor
  • Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
  • Three cover versions for individual PCB connections
Technical specifications
Depth 36.95 mm
Product type upper part of housing
Height 75 mm
Suitable for enclosure
Degree of protection (IP) IP20
Width 70.1 mm
Colour light gray
Material ABS/PC
Type of mounting snap-in
Logistics
Country of origin IN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
