1050386 | Phoenix Contact
Front plate, PC, (W x H x D) 196 x 34 x 62 mm, gray, 1050386
Unit Price (€ / pc.)
18.326 € *
Standard delivery time from the manufacturer is: 5 Weeks

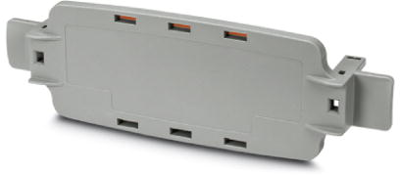

Front plate, 1050386, Phoenix Contact
Snap-in locking blank faceplate of the ECS Family. IP66/67/69 rated when mated with associated enclosure. Color: Grey (7042), Width: 196 mm, Height: 34 mm, Depth: 62 mm.
Features
- Housing design supports the installation of a range of PCB thicknesses for high application diversity
- Optional accessories for wall and mast mounting
- Proven PCB connection technology
- Integrated tamper protection
- Effective protection of electronics against thermal and mechanical influences
- Suitable for outdoor/indoor applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 196 mm | |
| Depth | 62 mm | |
| Material | PC | |
| Degree of protection (IP) | IP66/IP67/IP69 | |
| Height | 34 mm | |
| Product type | front plate | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
