1050385 | Phoenix Contact

Front plate, PC, (W x H x D) 196 x 34 x 62 mm, gray, 1050385

Order No.: 64P0851
EAN: 4055626666921
MPN:
1050385
ECS-P-122X169-L-UV-1M12 GY
Series: ECS
1050385 Phoenix Contact Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
26.6203 € *
Available in 10 days: 45 pcs. - if ordered today
Total Price:
26.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.6203 €

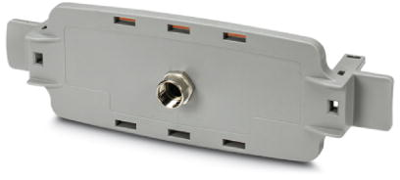

Front plate, 1050385, Phoenix Contact

Snap-in locking one female M12 faceplate of the ECS Family. IP66/67/69 rated when mated with associated enclosure. Color: Grey (7042), Width: 196 mm, Height: 34 mm, Depth: 62 mm.

Features

  • Housing design supports the installation of a range of PCB thicknesses for high application diversity
  • Optional accessories for wall and mast mounting
  • Proven PCB connection technology
  • Integrated tamper protection
  • Effective protection of electronics against thermal and mechanical influences
  • Suitable for outdoor/indoor applications
Technical specifications
Material PC
Colour gray
Product type front plate
Degree of protection (IP) IP66/IP67/IP69
Height 34 mm
Width 196 mm
Depth 62 mm
Logistics
Customs tariff number 85389099
Country of origin US
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
