1025889 | Phoenix Contact

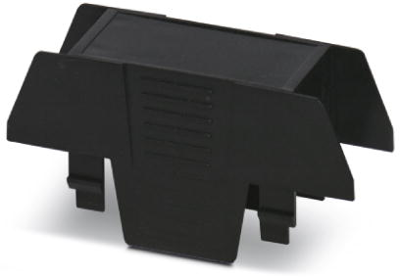

Upper part of housing, ABS/PC, (W x H x D) 22.6 x 75.26 x 36.95 mm, black, for enclosure, 1025889
Unit Price (€ / pc.)
2.2015 € *
Available in 10 days: 260 pcs. - if ordered today
Upper part of housing, 1025889, Phoenix Contact
DIN rail housing, Upper housing part, Tall design, Connection opening on both sides, Width: 22.6 mm, Height: 75.26 mm, Depth: 36.95 mm, Color: black (9005).
Features
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | enclosure | |
| Depth | 36.95 mm | |
| Height | 75.26 mm | |
| Material | ABS/PC | |
| Degree of protection (IP) | IP20 | |
| Product type | upper part of housing | |
| Type of mounting | snap-in | |
| Colour | black | |
| Width | 22.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
