70104915 | PEPPERL+FUCHS
Terminating resistor, M12, 5 pole, screw connection, screw locking, straight, 70104915
Order No.: 28G8039
EAN: 4050143393763
MPN:
70104915
V15S-TR-CAN/DN-120R
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
33.5223 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
33.52 € *
Price list
Quantity
Price per unit*
1 pcs.
33.5223 €
3 pcs.
32.1776 €
5 pcs.
30.9400 €
*incl. VAT plus shipping costs
Subject to prior sale

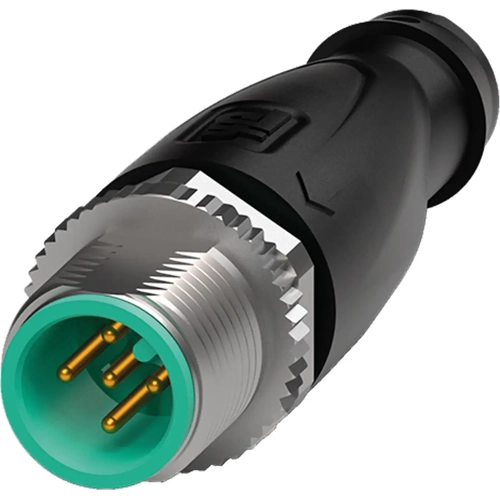

Terminal resistor, V15S-TR-CAN/DN-120R, PEPPERL+FUCHS
Terminal resistor M12 male straight A-coded 5-pin, for DeviceNet, CANopen.
Features
- Suitable for DeviceNet and CANopen
- Specific design protects against loosening and inaccurate installation
- Pins 4 and 5 bridged
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | terminating resistor | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Degree of protection (IP) | IP68/IP69 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
