257469 | PEPPERL+FUCHS

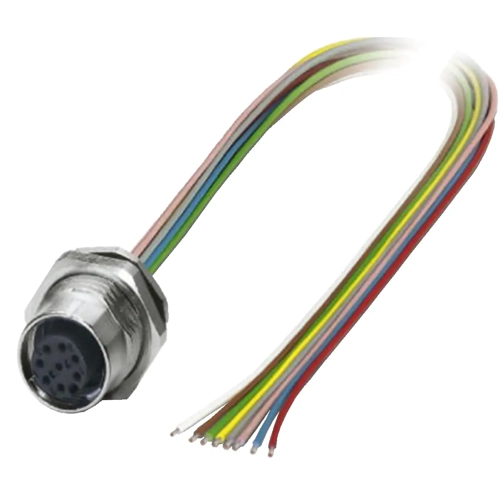

Panel plug, M12, 8 pole, screw connection, screw locking, straight, 257469
Order No.: 28G8050
EAN: 4050143042463
MPN:
257469
V19-M16H-500
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
26.8464 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
26.85 € *
Price list
Quantity
Price per unit*
1 pcs.
26.8464 €
3 pcs.
25.6802 €
5 pcs.
24.2760 €
7 pcs.
23.0146 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacles, V19-M16H-500, PEPPERL+FUCHS

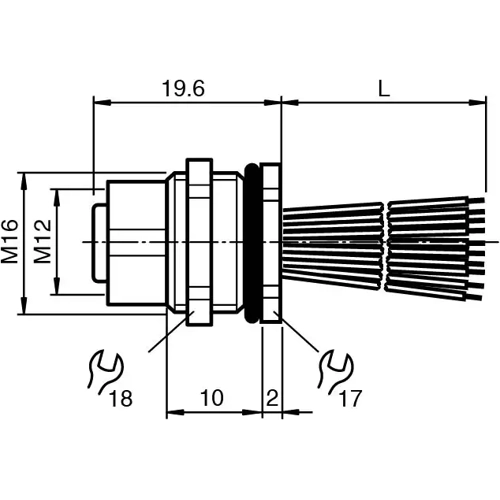

Receptacles, M12/M16, 8-pin, Rear/screw mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | rear/screw mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
