124355 | PEPPERL+FUCHS

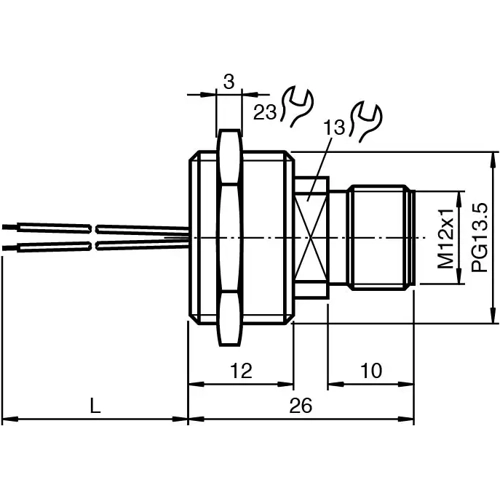

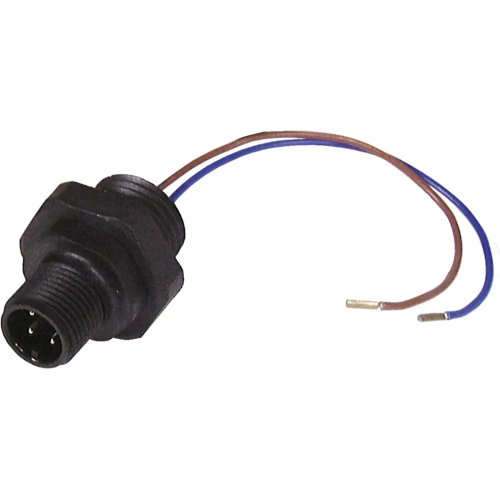

Panel plug, M12, 4 pole, screw connection, screw locking, straight, 124355
Order No.: 28G8053
EAN: 4050143012589
MPN:
124355
V1-PG13,5-Y124355
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
35.4739 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
35.47 € *
Price list
Quantity
Price per unit*
1 pcs.
35.4739 €
3 pcs.
34.0578 €
5 pcs.
32.7488 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacles, V1-PG13,5-Y124355, PEPPERL+FUCHS
Receptacle, M12/PG13.5, 2-pin; Plastic version.
Features
- Front/screw mounting
- M12 plug can be mounted in any position
- Only two pins assigned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front wall/screw mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
