189956 | PEPPERL+FUCHS
Capacitive sensor, PNP, flush mounting M30, not flush, 60 V (DC), 200 mA, 189956
Order No.: 28G6022
EAN: 4050143019168
MPN:
189956
CCN15-30GS60-A2
Unit Price (€ / pc.)
141.8599 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
141.86 € *
Price list
Quantity
Price per unit*
1 pcs.
141.8599 €
2 pcs.
138.2185 €
3 pcs.
134.7675 €
*incl. VAT plus shipping costs
Subject to prior sale

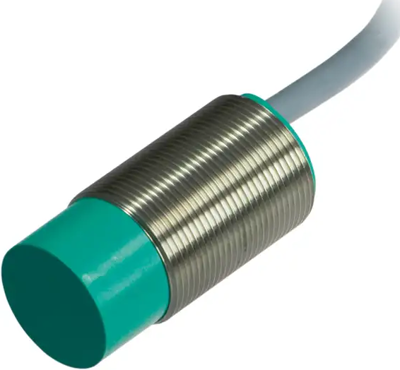

Capacitive sensor, CCN15-30GS60-A2, PEPPERL+FUCHS
Capacitive sensor, 15 mm non-flush, Operating distance adjustable via potentiometer.
Features
- High EMC resistance
- Stainless steel version
- Complementary outputs
- Operating voltage range 10 V -60 V DC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | capacitive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 60 V | |
| switching current | 200 mA | |
| Detecting distance | 15 mm | |
| Assembly | flush mounting M30, not flush | |
| Connection | cable, PVC 4x0.75 mm², 2 m | |
| Degree of protection (IP) | IP67 | |
| diameter | 30 mm | |
| Length | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
