037645 | PEPPERL+FUCHS
Capacitive sensor, 2 wire, flush mounting M30, not flush, 1 Form A (N/O), 253 V (DC), 200 mA, 037645
Order No.: 28G6034
EAN: 4050143003228
MPN:
037645
CJ10-30GM-WS
Unit Price (€ / pc.)
259.8841 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
259.88 € *
Price list
Quantity
Price per unit*
1 pcs.
259.8841 €
2 pcs.
253.5414 €
*incl. VAT plus shipping costs
Subject to prior sale

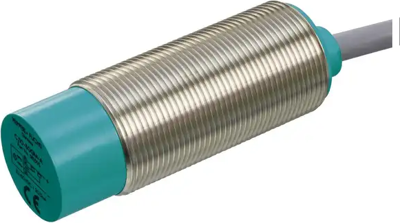

Capacitive sensor, CJ10-30GM-WS, PEPPERL+FUCHS
Capacitive sensor, 10 mm non-flush, The switching distance can be set over a wide range with the potentiometer.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cable, PVC 3x0.75 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) | |
| Product type | capacitive sensor | |
| diameter | 30 mm | |
| Degree of protection (IP) | IP67 | |
| Version | 2 wire | |
| Assembly | flush mounting M30, not flush | |
| Switching Voltage (DC) | 253 V | |
| switching current | 200 mA | |
| Detecting distance | 10 mm | |
| Length | 80 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
