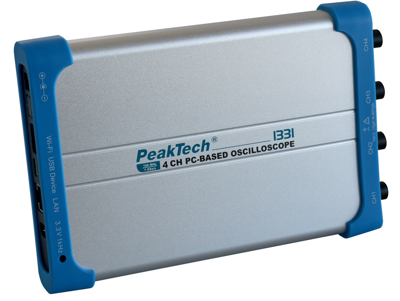

PC oscilloscope, 1331, PeakTech

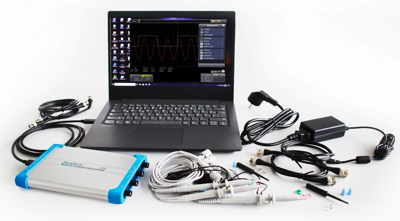

This powerful 4-channel oscilloscope is ideal for mobile use on a laptop or for permanent installation in control cabinets. For fast display of any incoming waveform, just press the Autoset button and the oscilloscope itself will search for the best possible display. With Autoscale, on the other hand, the scaling of the time base can be adjusted in a user-friendly way. Recorded waveforms can be saved directly to the hard disk as an image file, table or text using the included PC software. All oscilloscope functions are controlled via the comprehensive software. Various triggers, channel settings, measurement functions, sampling, cursor, pass/fail and mathematical functions can be set. Data transfer to the PC takes place via an isolated LAN connection or the USB interface, whereby the unit is directly supplied with the necessary voltage via USB.
Features
- 4-channel 100 MHz PC oscilloscope with 1 GS/s sampling rate
- Control via PC software
- Memory length of 10 million points per channel
- XY mode and FFT function
