P 1330 | PeakTech

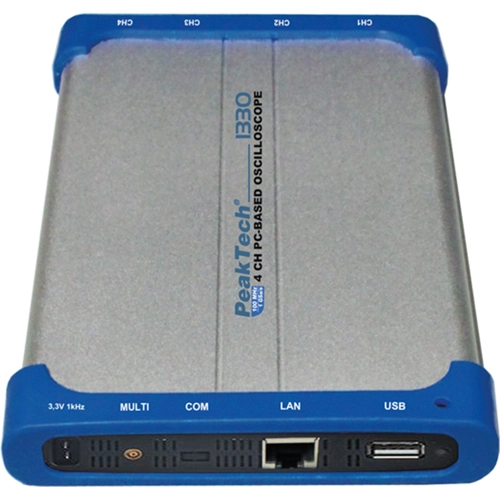

4-channel PC oscilloscope P 1330, 100 MHz, 1 GSa/s, 3.5 ns
Order No.: 20K608
EAN: 4099891458676
MPN:
P 1330
1330
This item is no longer available.
As an alternative, we recommend the following item:
4-channel PC oscilloscope P 1331, 100 MHz, 1 GSa/s, 3.5 ns
Order No.: 24K5798
Manufacturer: PeakTech
per pc. 588.693 € *
PC oscilloscopes, type PeakTech 1325/1330.
For mobile applications on the notebook or installation in control cabinets; Features: four channels, 20 automatic measuring modes, mathematical functions (+, -, x, / and FFT), LAN port for remote network communication, USB port for real-time data transmission. Input coupling: DC, AC, GND. Vertical sensitivity: 2.0 mV to 5.0 V. Sampling width: 0.5 S/s to 1.0 GSa/s. Dimensions: 190 x 120 x 18 mm. Weight: 260 g (1325), 300 g (1330). Supplied with software, USB cable, 4 probes (1 to 1, 10 to 1), 4 BNC cables, AC adapter.
Technical attributes (type, bandwidth, sampling rate (per channel), rise time): 1330, 100 MHz, 1.0 GSa/s, 3.5 ns
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bandwidth | 100 MHz | |
| Sample Rate | 1 GSa/s | |
| Width | 190 mm | |
| Number of channels | 4 | |
| Height | 120 mm | |
| Rise time | 3.5 s | |
| Weight | 260 g | |
| Version | PC oscilloscope | |
| Length | 18 mm | |
| Category | Cat II |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90302000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
