P 4090 | PeakTech

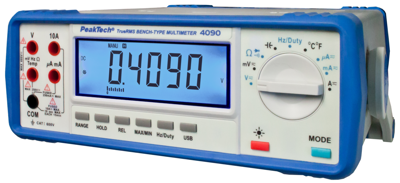

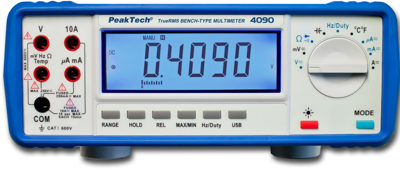

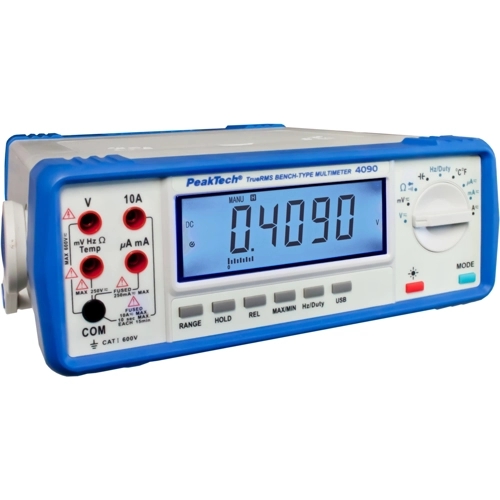

Name: TRMS digital bench multimeter P 4090, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, CAT I 600 V
Brand: PeakTech
SKU: 24K5598
Price: 296.31 EUR
Availability: InStock

TRMS digital bench multimeter P 4090, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, CAT I 600 V

Order No.: 24K5598

EAN: 4250569402524

MPN:

P 4090

4090

Image may differ

Key Specification:

Version digital bench multimeter

TRMS possible Yes

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 600 V

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

296.31 € *

Available: 1 pcs.

Leadtime: 2 Weeks **

Total Price:

296.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Digital table multimeter, 4090, PeakTech

This digital bench multimeter has high accuracy measurement functions and a large 4 ½-digit LCD display with backlight.

Features

4 1/2-digit, 21 mm LCD display (max. 22000) with backlighting
True RMS measurement (TrueRMS)
Automatic and manual range selection
Measured value, maximum value and minimum value hold function

Technical specifications

	Display Digits	22000
	Version	digital bench multimeter
	TRMS possible	Yes
	max. measured current value (AC)	10 A
	max. measured current value (DC)	10 A
	max. resistance range	220 MΩ
	max. voltage measuring range (AC)	600 V
	max. voltage measuring range (DC)	600 V
	Surge voltage category	CAT I 600 V
