LDP-340 | PeakTech
Digital display instrument, LDP-340
Digital display instruments, type PeakTech LDP-.
Can be operated as voltmeter or ammeter with input sensitivity of 200 mV, 3 1/2-digit LED display or LCD, with or without backlight, adjustable decimal point; Measuring principle: high and low signal edge ADC. Measuring voltage isolated from the operating voltage, no galvanic isolation. Input voltage: 199.9 mV DC. Display: max. 1999, with automatic polarity display. Tolerance: ±0.5% (+23 °C). Input resistance: >100 Mohm. Overrange display with a "1" in the display field. Decimal point: selectable with jumper. Measuring rate: 2 to 3 measurements per second. Installation: snap-in.
LCD, digit height 8.0 mm, type LDP-335/340 LCD.

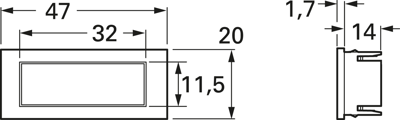

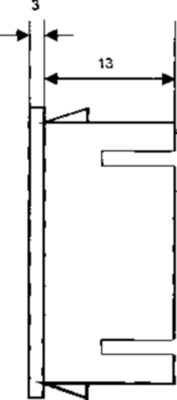

Operating voltage: 9.0 VDC. Power loss: 1.0 mA. Dimensions: 47 x 20 x 16 mm. Front-panel cutout: 43 x 19 mm.
Type: LDP–340 LCD, backlit
| Filter | Property | Value |
|---|---|---|
| Control Output | No | |
| Assembly | built-in mounting | |
| Max. current | 1 mA | |
| Frequency measurement | No | |
| max. Voltage | 9 V | |
| Height of cut-out | 19 mm | |
| Installation depth | 16 mm | |
| Voltage | 7-12 VDC | |
| Width of cut-out | 43 mm |
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | CN |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
