PCE-IT414 | PCE Instruments
Insulation tester, VDE 0413 part 1, PCE Instruments PCE-IT414
Order No.: 31K0555
EAN: 4250348700971
MPN:
PCE-IT414
Unit Price (€ / pc.)
1,005.1097 € *
Available in 4 Days: 5 pcs. - if ordered today

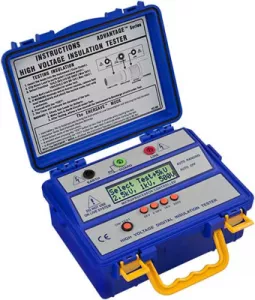

Insulation meter, PCE-IT414, PCE Instruments
The PCE-IT414 Insulation Meter belong to a series of highly accurate resistance devices that have a 6 digit display. These Insulation Meters have been developed specifically for technical service and for difficult measurement conditions. One of the advantages is the built in protection to avoid errors originating from loss of current. The Insulation Meter contains a microprocessor and both optical and visual alarms.
Scope of delivery
- 1 x insulation tester PCE-IT414
- 1 x colour-coded silicone test leads
- 1 x integrally protected ultra-high voltage probe with coaxial silicone conductor
- 8 x AAA battery
- 1 x manual
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | insulation tester | |
| Version | VDE 0413 part 1 | |
| Batteries | 8 x AA | |
| Max measured value DC voltage | 10000 V | |
| Insulation resistance Max | 600 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | in_review |
| SVHC free | not_specified |
