PCE-430 | PCE Instruments

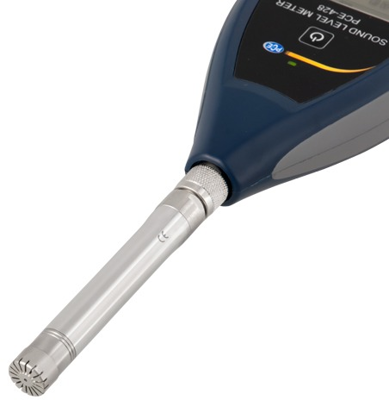

PCE-430 Sound Level Meter
Sound level meter, PCE-430, PCE Instruments
PCE-430 is a class 1 sound level meter. This portable high-accuracy sound level meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected. The handheld meter also functions as a data logger, recording measurements at an adjustable interval from 1 s ... 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the class 1 sound level meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.
Features
- 1/1 octave band included
- 1/3 octave band optional
- A, B, C & Z Frequency weighting
- Fast, Slow, Pulse and Peak time weighting
- Statistics function
- Low inherent noise
| Version | sound level meter | |
| Accuracy | class 1 | |
| measurement range | 22 to 136 dB |
| Country of origin | DE |
| Customs tariff number | 90278990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
