T12N-C | Panduit
Cable bundle hose, bundle-Ø 1.6 to 12.7 mm, PA, natural, T12N-C, package with 30,5 meters
Unit Price (€ / pck.)
55.4421 € *
Available: 36 pck.
Total Price:
55.44 € *
Price list
Quantity
Price per unit*
1 pck.
55.4421 €
5 pck.
50.6940 €
10 pck.
47.5286 €
25 pck.
44.3513 €
50 pck.
41.1859 €
*incl. VAT plus shipping costs
Subject to prior sale

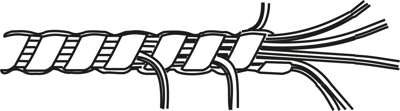

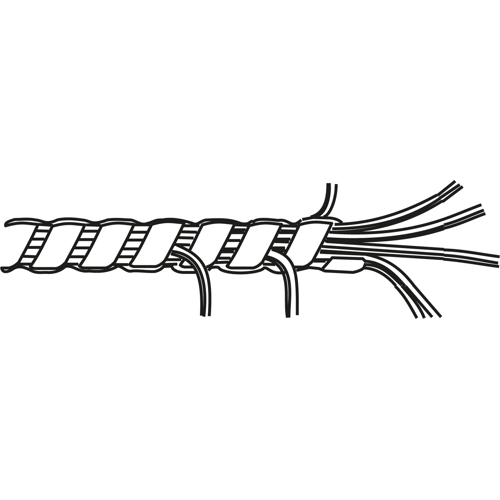

Cable spirals, type Panduit T.
Made of PA 6.6, abrasion-proof and self-extinguishing. For demanding indoor applications. UV-stabilized version for outdoor applications
For harnesses 1.6 to 12.7 mm, type T12.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 1.6 mm | |
| max. Bundle diameter | 12.7 mm | |
| Material | PA | |
| Colour | natural | |
| Wall thickness | 0.76 mm | |
| Length | 30.5 m | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 30.5 meters |
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
