CBP25-C | Panduit

Spacer for circuit board, click engagement both sides, 13.5 mm, plain, Polyamide

Order No.: 18H1372
EAN: 0074983554409
MPN:
CBP25-C
07498355440

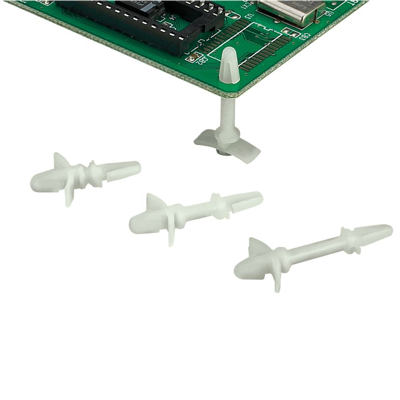

CBP25-C Panduit PCB Fasteners Image 1
CBP25-C Panduit PCB Fasteners Image 2
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Next delivery: 1,200 pcs. on 2025-05-30
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4522 €
100 pcs.
0.3927 €
500 pcs.
0.3451 €
1000 pcs.
0.3094 €
2500 pcs.
0.2856 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB spacer, CBP25-C, Panduit.

For setting the clearance between two PCBs or between a PCB and the chassis. With two lock pins for fastening screws; Material: polyamide 6.6, plain-colored. Mounting holes: 4.0 mm. Material thickness: 1.6 mm.

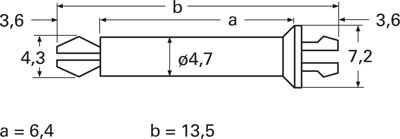

Technical attributes (type, dimension a (clearance), dimension b (overall holder length)): CBP25-C, a 6.4, b 13.5 mm.

Technical specifications
Version spacer
Material PA
Panel thickness 1.6 mm
Colour natural
Logistics
Customs tariff number 39269097
Country of origin US
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
