CBP12-C | Panduit
Spacer for circuit board, click engagement both sides, 10.2 mm, plain, Polyamide
Order No.: 18H1370
EAN: 0074983554393
MPN:
CBP12-C
07498355439
Unit Price (€ / pc.)
0.6307 € *
Next delivery: 500 pcs. on 2025-07-22
Total Price:
6.31 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6307 €
100 pcs.
0.4641 €
500 pcs.
0.3808 €
1000 pcs.
0.3332 €
2500 pcs.
0.2892 €
*incl. VAT plus shipping costs
Subject to prior sale

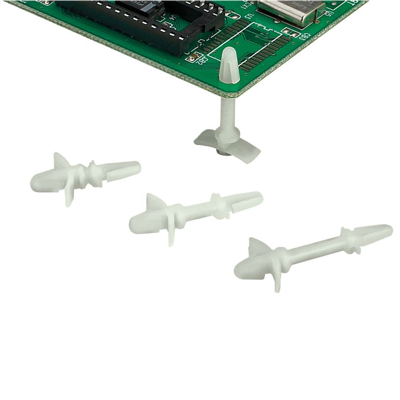

PCB spacer, CBP12-C, Panduit.
For setting the clearance between two PCBs or between a PCB and the chassis. With two lock pins for fastening screws; Material: polyamide 6.6, plain-colored. Mounting holes: 4.0 mm. Material thickness: 1.6 mm.

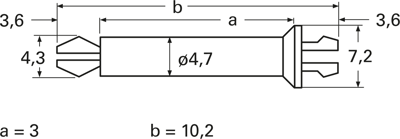

Technical attributes (type, dimension a (clearance), dimension b (overall holder length)): CBP12-C, a 3.0, b 10.2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Panel thickness | 1.6 mm | |
| Version | spacer | |
| Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
