GES99F-C | Panduit
Edge protection profile, closed edge, (W x H) 4.3 x 4.7 mm, max. clamping range 2.5 mm, PE, natural, GES99F-C
Order No.: 12H3557
EAN: 0074983601837
MPN:
GES99F-C
07498360183
Unit Price (€ / mtr.)
3.1535 € *
Next delivery: 180 mtr. on 2025-11-04
Total Price:
3.15 € *
Price list
Quantity
Price per unit*
1 mtr.
3.1535 €
5 mtr.
2.9750 €
30 mtr.
2.7965 €
60 mtr.
2.7370 €
150 mtr.
2.6180 €
*incl. VAT plus shipping costs
Subject to prior sale

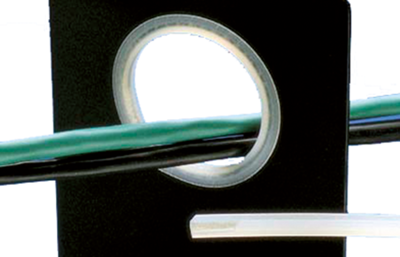

Edge protection profile, type Panduit GES99F-C
Made of PE, plain-colored. Highly flexible. For inside applications.
Wall thickness: 1.6 to 2.5 mm

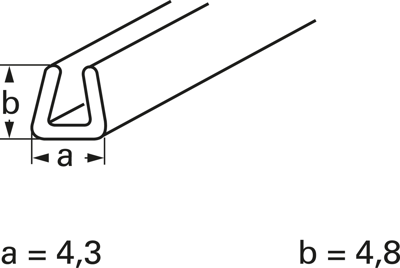

Dimensions: Width 4.3 mm, Height 4.8 mm
Version: slotted
Operating temperatures: - 40 to +50 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | closed edge | |
| Width | 4.3 mm | |
| Height | 4.7 mm | |
| min. clamping range | 1.6 mm | |
| max. clamping range | 2.5 mm | |
| Material | PE | |
| Colour | natural | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
