GES189F-C0 | Panduit
Edge protection profile, closed edge, (W x H) 7.6 x 7.6 mm, max. clamping range 4.8 mm, PE, black, GES189F-C0, package with 30,5 meters
Order No.: 12H3896
EAN: 4099891196752
MPN:
GES189F-C0
07498350396
NCNR (non cancelable / non returnable)
Unit Price (€ / pck.)
96.8541 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
96.85 € *
Price list
Quantity
Price per unit*
1 pck.
96.8541 €
5 pck.
90.6066 €
10 pck.
84.3591 €
25 pck.
78.1116 €
50 pck.
71.8641 €
*incl. VAT plus shipping costs
Subject to prior sale
Grommet edging, GES189F-C0, Panduit

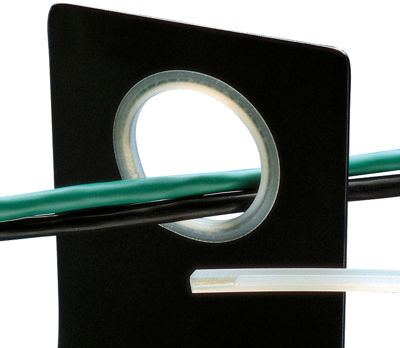

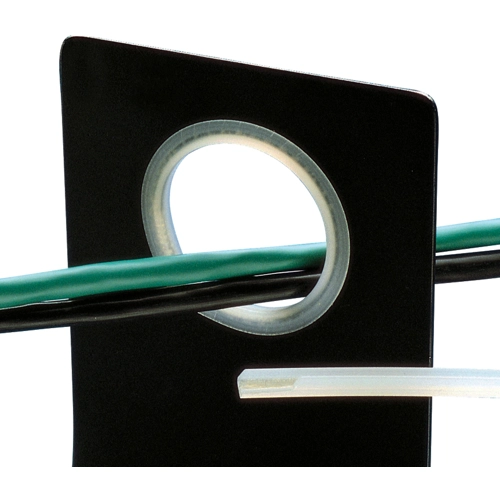

Polyethylene slotted grommet edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Slotted edging is recommended for use on irregularly shaped and round panel holes.
The material is highly flexible, while the adhesive lining ensures the product will stay in place.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | closed edge | |
| Width | 7.6 mm | |
| Height | 7.6 mm | |
| min. clamping range | 3.7 mm | |
| max. clamping range | 4.8 mm | |
| Material | PE | |
| Colour | black | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Carton with 30.5 meters |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
