GES144F-C | Panduit
Edge protection profile, closed edge, (W x H) 5.3 x 5.6 mm, max. clamping range 3.7 mm, PE, natural, GES144F-C
Order No.: 12H3558
EAN: 0074983601776
MPN:
GES144F-C
07498360177
Unit Price (€ / mtr.)
3.3558 € *
Available: 46 mtr.
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 mtr.
3.3558 €
5 mtr.
3.1297 €
30 mtr.
2.9750 €
60 mtr.
2.8917 €
150 mtr.
2.7727 €
*incl. VAT plus shipping costs
Subject to prior sale

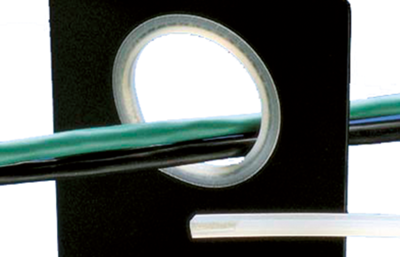

Edge protection profile, type Panduit GES144F-C
Made of PE, plain-colored. Highly flexible. For inside applications.
Wall thickness: 2.5 to 3.7 mm

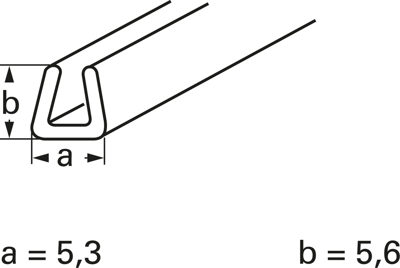

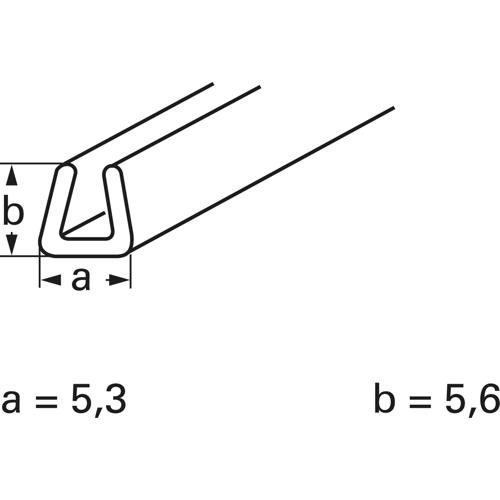

Dimensions: Width 5.3 mm, Height 5.6 mm
Version: slotted
Operating temperatures: - 40 to +50 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | closed edge | |
| Width | 5.3 mm | |
| Height | 5.6 mm | |
| min. clamping range | 2.5 mm | |
| max. clamping range | 3.7 mm | |
| Material | PE | |
| Colour | natural | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
