ABM3H-A-L | Panduit

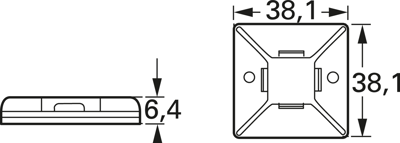

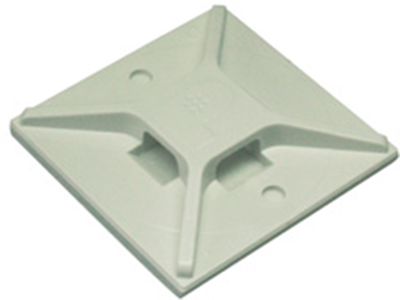

Mounting base, PA, white, self-adhesive, (L x W x H) 38.1 x 38.1 x 6.4 mm, ABM3H-A-L
Order No.: 12H4790
EAN: 0074983584727
MPN:
ABM3H-A-L
07498358472
Unit Price (€ / pc.)
1.8088 € *
Available: 58 pcs.
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6660 €
100 pcs.
1.4399 €
500 pcs.
1.3328 €
1000 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale
Mounting sockets, type Panduit ABM-.
For cable ties, self-adhesive. For general-purpose, ties can be inserted from all four sides.
For cable tie width up to 9.0 mm, type ABM3H-.
Material: PA 6.6. With optional additional M 3 screw fastener.
Type: A–L, white, standard version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Self-adhesive | Yes | |
| Length | 38.1 mm | |
| Product type | mounting base | |
| Height | 6.4 mm | |
| Width | 38.1 mm | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
