ABM2S-A-C14 | Panduit

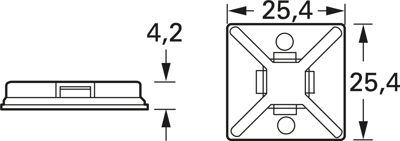

Mounting base, ABS, white, self-adhesive, (L x W x H) 25.4 x 25.4 x 4.2 mm, ABM2S-A-C14
Order No.: 12H4786
EAN: 0074983580286
MPN:
ABM2S-A-C14
07498358028
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
10 pcs.
1.0710 €
50 pcs.
0.9639 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

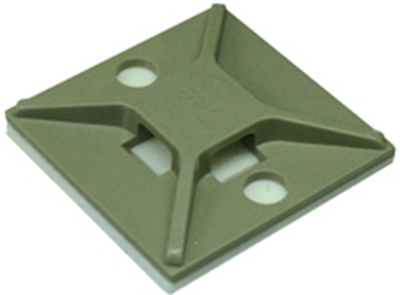

Mounting sockets, type Panduit ABM-.
For cable ties, self-adhesive. For general-purpose, ties can be inserted from all four sides.
For cable tie width up to 5.0 mm, type ABM2S-.
Material: ABS. With optional additional M 3 screw fastener.
Type: A–C14, gray, standard version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| Self-adhesive | Yes | |
| Length | 25.4 mm | |
| Product type | mounting base | |
| Height | 4.2 mm | |
| Width | 25.4 mm | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
