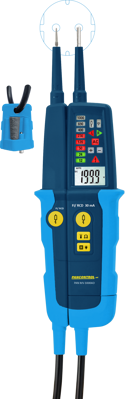

PAN MV-1000AD | PANCONTROL

Voltage and continuity tester, PAN MV-1000AD, PANCONTROL

The PAN MV-1000AD is a professional voltage and continuity tester for use in households, businesses, and industry. It enables precise measurements in the range from 12 V to 1000 V (AC/DC) and is ideal for quickly checking electrical installations. Thanks to the LED and illuminated LCD display, you can see measured values at a glance. The device automatically distinguishes between low voltages (green LEDs) and potentially dangerous voltages (red LEDs), thus providing additional safety during use. Functions include a two-pole phase sequence indicator, a single-pole phase test with warning tone, and a switchable residual current device (30 mA) test for testing residual current circuit breakers. The integrated resistance measurement and acoustic continuity tester round out the range of functions.

A switchable load helps suppress stray voltages and reliably identify real voltage sources. The integrated LED flashlight, data hold function, and automatic shutdown make the MV-1000AD particularly user-friendly. The device is dust and splash-proof (IP64), TÜV/GS tested and designed for measurement categories CAT III 1000 V / CAT IV 600 V. Included are a practical bag, screw-on contact sleeves for secure contact in sockets and detailed operating instructions.

Features

• Resistance measurement from 1 Ω to 1999 Ω
• Analog LED and backlit digital LCD display
• Test button for 30 mA FI - circuit breaker
• 2-pole rotary field indication
• Single-pole phase testing with acoustic alarm
• Switchable load for suppressing stray voltages
• LED flashlight
• Auto power off
• Water and dust protection class IP 64
